Rotary Vacuum Dryer Overview:
UltraPilot Technologies Pilot Systems of Rotary Vacuum Dryer Paddle Systems (RVPD) are designed to dry filtered wet cakes from Agitated Nutsche Filter and other filtration systems. These pilot systems are specifically suited for Low-Temperature Drying under High Vacuums thereby being ideal for sensitive API molecules.
These pilot systems have been designed in different configurations to specifically be useful in Clean Room Applications and Sterile environments with an emphasis on full cleanability between batches or between changes of campaigns for drying of different molecules.
These pilot systems are being used in the drying process of Agro-Chemicals, Fine Chemicals, Pharmaceuticals, and Food Products.
Useful for slimy, sticky as well as crystalline pastes. The dry powder obtained with <1% moisture is then further processed.
> These systems are available in different corrosion-resistant materials:
- Stainless Steel
- Hastelloy and Special Alloys
- PVDF, Halar and Tefzel Coating
> Shaft Sealing Design – Double Dry mechanical seals to eliminate product contamination.

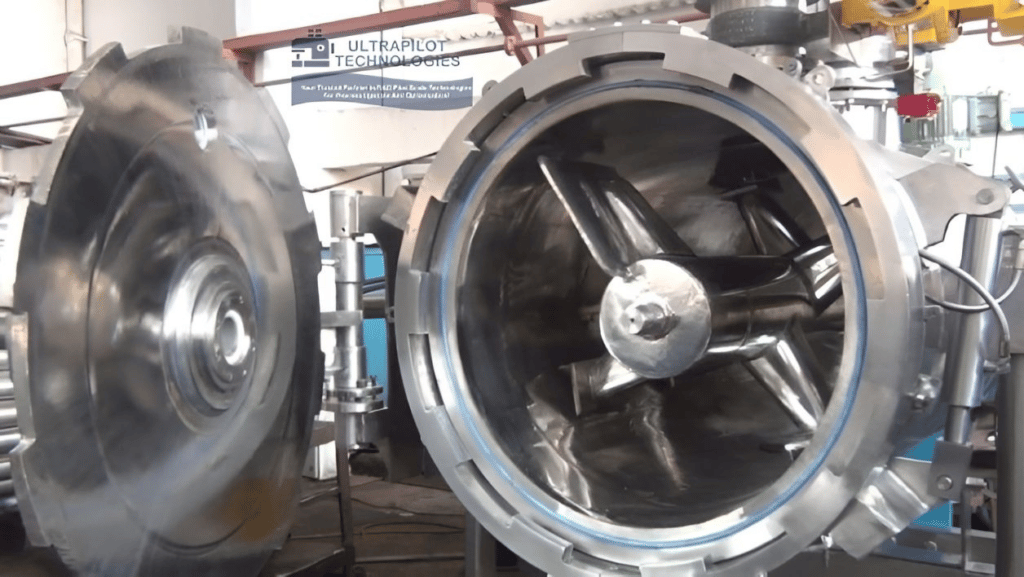

> Agitator – Hollow heated rotating agitator with an improved paddle design for better heat transfer.
> Bottom Discharge – Zero Cavity V Notch Ball Valve for quick opening and discharge of dried product with no dead volume.
> Charging Capacities 40% to 60% of Gross Capacities depending on nature of slurry/product to be dried.

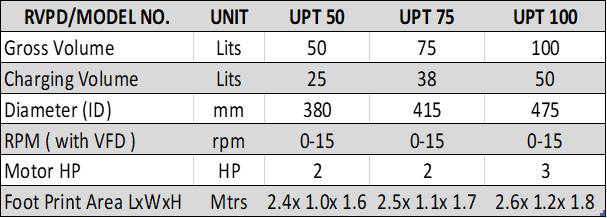

> Gross Capacities offered – 50 Ltrs. 75 Lits and 100 Ltrs.
> Standard Accessories – Dust Filter

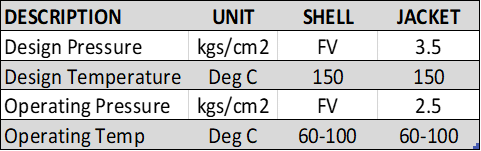

> Design Pressure – 3.5 kgs/cm² on Jacket
> Operating Pressure – 2.5 kgs/cm² on Jacket
> Design Temperature up to 150°C
> Operating Temperature up to 150°C
> HMI/PLC/SCADA Systems.
> PLC controls, autonomous or slaved to DCS, MCC.

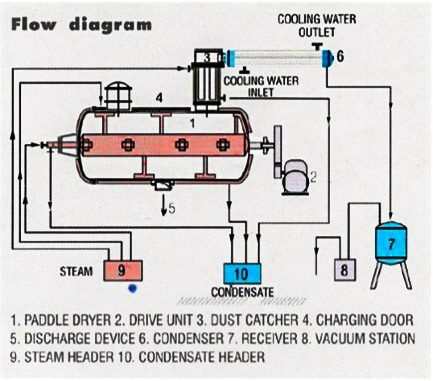

> The following optional features can be provided along with the system:
- Sampling System.
- Condenser.
- Receiver.
- Vacuum Pump.

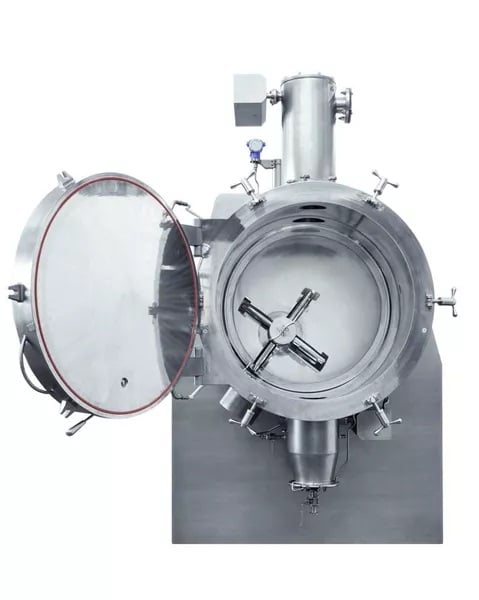

> Fully Automated Hydraulically operated front opening design.
